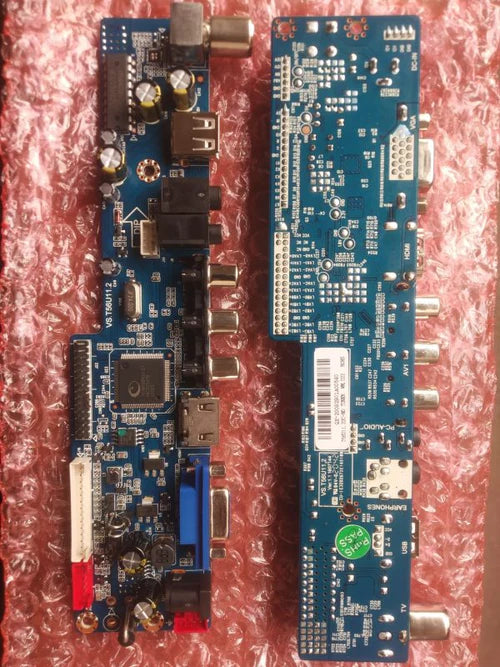

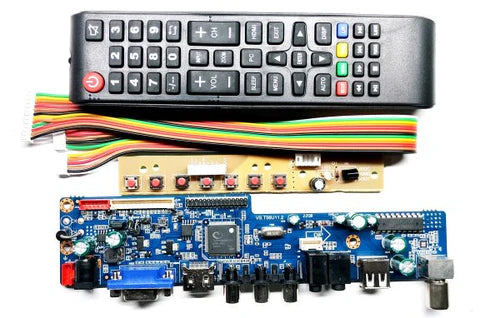

Universal LED TV motherboard VS.T56U11.2 TV Board 22 Inch to 55 inch with Remote

Board no-VS.T56U11.2universal lcd led tv control Board

• this board no need to install software.

• All resolution already  install. Set Resolution through remote Code

• CARD NUMBER: VS.T56U11.2

• MAIN IC NUMBER: TSUMV56RUU-Z1 AWU14385A 1931S

• CHIPSET: TSUMV56RU-Z1

• AUDIO IC NUMBER: CD1517CP

• PROGRAMMING IC NUMBER: 25Q32CS1G

• TUNER CHIPSET: R842

Input/Output Port

• MAIN POWER

• DC 12V

• VGA IN

• HDMI

• AV IN

• PC AUDIO

• EARPHONE

• RF

• SPEAKER 2 x 5 Watt (8 Ohm)

• INVERTER SIGNAL OUTPUT

• IR+KEY OUTPUT

• LVDS OUTPUT CONNECTOR

You can play through the USB port:

Audio: Mp3, WMA, aac, m4a

Video: avi, Mp4, mkv, mov, mpg, dat, vob

Picture: jpg, jpeg, bmp, png

and text file.

Resolution setting code

Service Menu Code

Input+208

Menu+1147

1366×768 INPUT 20081
1024*768 = INPUT 20082
1280*1024 INPUT 20083
1440 900 INPUT 20084
1600 900 INPUT 20085
1680 1050 INPUT 20086
THIS RESOLUTION INBUILD SOFTWARE
ONLY UNIVERSAL REMOTE
